VERTICAL BALERS
Compactors Inc. has a full line of Vertical Balers to process Cardboard, Plastics & Non-Ferrous Metals. Our multi-purpose 60” downstroke balers are best for grocery stores, retailers, pharmacies, distribution centers, hospitals and manufacturers. Compactors, Inc. provides exceptional customer service and integrated turn-key solutions. Let us provide an estimate for you to include: Equipment, Options, Freight, Installation, Commissioning/Training and On-Site Engineering Support.
BACE BALERS
PTR BALERS
VERTICAL BALER – MODEL V32 (36″)
NOMINAL BALE SIZE (WxDxH)
36″ x 24″ x 30″
BALE WEIGHT
Up to 250 lbs
COMPACTION FORCE
12,016 lbs
BALER DIMENSIONS (WxDxH)
59″ x 32″ x 99″
Our standard high density baler has an economical yet dependable design. This model is ideal for organizations that recycle OCC or Plastic Film.
VERTICAL BALER – MODEL V43HD (48″)
NOMINAL BALE SIZE (WxDxH)
48″ x 30″ x 48″
BALE WEIGHT
Up to 800 lbs
COMPACTION FORCE
62,203 lbs
BALER DIMENSIONS (WxDxH)
75″ x 43″ x 141″
This small-footprint baler is the choice of numerous customers who have width restriction in their recycling operations

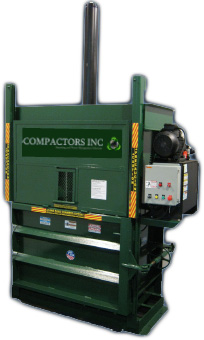

VERTICAL BALER – MODEL V63OCC (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1000 lbs
COMPACTION FORCE
56,548/62,172 lbs
BALER DIMENSIONS (WxDxH)
88″ x 43.5″ x 139″
One of our most popular machines, this OCC baler is configured for generating mill size, marketable bales of corrugated materials (OCC).
VERTICAL BALER – MODEL V63HD (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,100 lbs
COMPACTION FORCE
62,202/67,857 lbs
BALER DIMENSIONS (WxDxH)
88.7″ x 45.5″ x 145.1″
This is a multi-material baler capable of baling paper, plastic, fiber, OCC and Non-Ferrous metals and other commercial applications.
VERTICAL BALER – MODEL V63XHD (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,300 lbs
COMPACTION FORCE
84,667 lbs
BALER DIMENSIONS (WxDxH)
91.5″ x 43″ x 156″
This is the high volume baler of choice for numerous recycling and distribution centers with high volumes or tough materials.
VERTICAL BALER – MODEL V63HDLP (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 30″
BALE WEIGHT
Up to 700 lbs
COMPACTION FORCE
62,202/67,857 lbs
BALER DIMENSIONS (WxDxH)
87″ x 45.5″ x 105″
This limited space baler is capable of baling paper, plastic, fiber, OCC & Non-Ferrous metals & other commercial applications.
CLOTHING VERTICAL BALER – MODEL V63HD-CM
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,300 lbs
COMPACTION FORCE
67,857 lbs
BALER DIMENSIONS (WxDxH)
85″ x 43″ x 147.5″
The V63HD-CM Clothing Baler is uniquely designed to produce up to a 1,300lb bale of clothing. This baler comes standard with an Extra Heavy Duty Frame and Floppy Dogs.
VERTICAL BALER – MODEL V6342 (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,000 lbs
COMPACTION FORCE
56,548/62,172 lbs
BALER DIMENSIONS (WxDxH)
87″ x 45.5″ x 135″
One of our most popular machines, this 60” Vertical Downstroke Baler is ideally suited for OCC & shrink-wrap, producing bales up to 1,000 lbs.
VERTICAL BALER – MODEL V63-865 (60″)
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 2,000 lbs
COMPACTION FORCE
150,798 lbs
BALER DIMENSIONS (WxDxH)
94″ x 47″ x 169.5″
This metal baler is manufactured for tin, aluminum, brass, bronze and other non-ferrous metals. It also bales paper, paper cores, plastics and other recyclables.
VERTICAL BALER – MODEL V73HD (72″)
NOMINAL BALE SIZE (WxDxH)
72″ x 30″ x 48″
BALE WEIGHT
Up to 1,300 lbs
COMPACTION FORCE
62,203 lbs
BALER DIMENSIONS (WxDxH)
99″ x 45″ x 141.5″
This 72” wide baler is used to accommodate larger or more lengthy boxes or other materials. It’s ideal for audio or TV boxes & other larger cardboard cartons.
VERTICAL BALER – MODEL V73OCC (72″)
NOMINAL BALE SIZE (WxDxH)
72″ x 30″ x 48″
BALE WEIGHT
Up to 1,300 lbs OCC
COMPACTION FORCE
56,548/62,172 lbs
BALER DIMENSIONS (WxDxH)
99″ x 45.5″ x 135″
This unit is 72” wide to accommodate larger or more lengthy boxes. This unit is ideal for appliance or television boxes and other larger cardboard cartons.
VERTICAL BALER – MODEL V74HD (72″)
NOMINAL BALE SIZE (WxDxH)
72″ x 40″ x 48″
BALE WEIGHT
Up to 1,500 lbs
COMPACTION FORCE
62,203 lbs
BALER DIMENSIONS (WxDxH)
99″ x 53.5″ x 141.5″
This wide opening baler can handle large Gaylord or furniture sized boxes, large pieces of plastic or other large recyclable items.
VERTICAL BALER – MODEL V3016HD (30″)
NOMINAL BALE SIZE (WxDxH)
30″ x 16″ x 24″
BALE WEIGHT
Up to 250 lbs
COMPACTION FORCE
62,203 lbs
BALER DIMENSIONS (WxDxH)
70″ x 43″ x 129″
Our Liquid Container Baler combines draining and baling refuse beverage or liquid containers in one step. You can increase your recycling time of refuse containers over 7 times faster than manually extracting the liquids
VERTICAL BALER – MODEL V74XHD (72″)
NOMINAL BALE SIZE (WxDxH)
72″ x 40″ x 48″
BALE WEIGHT
Up to 1,700 lbs
COMPACTION FORCE
84,667 lbs
BALER DIMENSIONS (WxDxH)
103.5″ x 53.5″ x 154.5″
Our standard V74XHD (heavy duty) features a 10 HP High Efficiency Power Unit. Offering a 72”wide feed opening and a 40” deep chamber, this is a perfect baler for white-goods boxes for which penetration is required.
VERTICAL BALER – MODEL VMAXX26
NOMINAL BALE SIZE (WxDxH)
72″ x 42″ x 45″
BALE WEIGHT
Up to 2,000 lbs
COMPACTION FORCE
150,798-165,878 lbs
BALER DIMENSIONS (WxDxH)
107″ x 57″ x 152″
This heavy duty baler delivers greater compact force while still only taking minimal space. Designed for use in retail stores, manufacturing plants, warehouses, distribution centers or any location producing refuse paper, plastic and non-ferrous metals.
VERTICAL BALER – MODEL VMAXX45
NOMINAL BALE SIZE (WxDxH)
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,400 lbs
COMPACTION FORCE
150,798-165,878 lbs
BALER DIMENSIONS (WxDxH)
95″ x 46″ x 152″
This heavy-duty baler delivers greater compact force while still only taking minimal space. Designed for use in retail stores, manufacturing plants, warehouses, distribution centers or any location producing refuse paper, plastic and non-ferrous metals.
NEVERSTOP VERTICAL BALER CONVEYOR SYSTEM
Too much volume for a standard Vertical Baler set-up, but not enough material to justify a costly horizontal? We has a solution for you. The NeverStop flow technology allows the conveyor to dump material into a gather bin where your recyclables are stored until the baler runs through its compaction cycle. The integrated baler conveyor system links seamlessly with just about any of our other baler models, allowing a constant flow of material from the feed hopper into the baling chamber.
VERTICAL DOWNSTROKE BALER – MODEL 324HD
BALE DIMENSIONS
29″ x 24″ x 30″
BALE WEIGHT
Up to 325 lbs
SHIPPING WEIGHT
1,325 lbs
BALER DIMENSIONS (WxDxH)
39″ x 29.5″ x 95.75″
This small but powerful machine has been specifically engineered for applications with limited space or budget. The 324HD series has all of the important safety features that make it a leader in the vertical baler industry. It’s designed for supermarkets, retail chains, hospitals, hotels and malls.
VERTICAL DOWNSTROKE BALER – MODEL 360HD
BALE DIMENSIONS
36″ x 24″ x 30″
BALE WEIGHT
Up to 250 lbs
SHIPPING WEIGHT
1,350 lbs
BALER DIMENSIONS (WxDxH)
47.25″ x 29.5″ x 95.75″
This small but powerful machine has been specifically engineered for applications with limited space or budget. The 360HD series has all of the important safety features that make it a leader in the vertical baler industry. It’s designed for supermarkets, retail chains, hospitals, hotels and malls.
VERTICAL DOWNSTROKE BALER – MODEL 420HD
BALE DIMENSIONS
42″ x 24″ x 30″
BALE WEIGHT
Up to 400 lbs
SHIPPING WEIGHT
1,440 lbs
BALER DIMENSIONS (WxDxH)
54.25″ x 29.5″ x 95.75″
This small but powerful machine has been specifically engineered for applications with limited space or budget. The 420HD series has all of the important safety features that make it a leader in the vertical baler industry. It’s designed for supermarkets, retail chains, hospitals, hotels and malls.
VERTICAL DOWNSTROKE BALER – MODEL 1800HD
BALE DIMENSIONS
48″ x 30″ x 36″
BALE WEIGHT
Up to 600 lbs
SHIPPING WEIGHT
3,500 lbs
BALER DIMENSIONS (WxDxH)
61″ x 38.25″ x 138″
This low profile baler is ideal for limited ceiling heights or low clearance. This powerful heavy duty machine is specifically engineered for applications with limited height or width. The 1800HD has all of the important safety features that make us the leader in the vertical industry. It’s designed for supermarkets, retail chains, hospitals, hotels and malls.
VERTICAL DOWNSTROKE BALER – MODEL 2300HD
BALE DIMENSIONS
60″ x 30″ x 48″
BALE WEIGHT
Up to 1000 lbs
SHIPPING WEIGHT
4,510 lbs
BALER DIMENSIONS (WxDxH)
78″ x 41″ x 152″
This most popular high density downstroke 60” baler, the 2300HD is constructed with heavy duty structural steel and produces bales up to 1,100 lbs. Designed for warehouses, retail chains, distribution centers and manufacturing plants.
VERTICAL DOWNSTROKE BALER – MODEL 3400HD
BALE DIMENSIONS
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,300 lbs
SHIPPING WEIGHT
5,400 lbs
BALER DIMENSIONS (WxDxH)
78″ x 48″ x 152″
This flagship signature series vertical downstroke baler, the 3400HD was the first high density baler to hit the marketplace. Designed for: supermarkets, retail centers, hospitals, hotels & malls.
VERTICAL DOWNSTROKE BALER – MODEL 3600HDLP
BALE DIMENSIONS
60″ x 36″ x 30″
BALE WEIGHT
Up to 800 lbs
SHIPPING WEIGHT
4,720 lbs
BALER DIMENSIONS (WxDxH)
94.5″ x 51.75″ x 95.5″
A popular high density downstroke 60” baler, the 3600HDLP is constructed with heavy duty structural steel and fits under an 8-foot ceiling. It’s designed for supermarkets, retail chains, hospitals, hotels and malls.
VERTICAL DOWNSTROKE BALER – MODEL 5000HD
BALE DIMENSIONS
60″ x 30″ x 48″
BALE WEIGHT
Up to 1,400 lbs
SHIPPING WEIGHT
6,515 lbs
BALER DIMENSIONS (WxDxH)
78.5″ x 41.5″ x 152″
This rugged, high density, heavy duty vertical baler provides an excellent balance of power and reliability for recyclers. It is designed for warehouses and recycling centers.
