VERTICAL COMPACTORS
PTR VCP SERIES

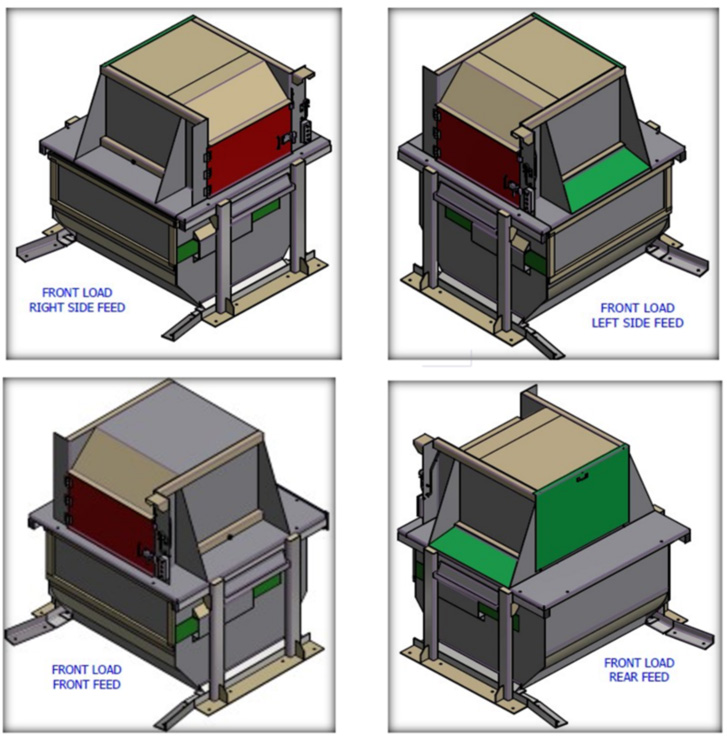

The PTR VCP Series is a space saving, affordable, self-contained compaction system for weekly volume of 100 cu. yds. or more of trash. Instead of wind blown containers, the VCP controls housekeeping, deters short dumpers and vermin while reducing pilferage and refuse costs. They can be loaded from the ground, through a wall with a door and chute or off a dock with a door and chute.
The PTR VCP Series has been engineered to provide many years of reliable service. The heavy-duty structural steel components are welded by certified AWS (American Welding Society) technicians and tested to ensure high compaction forces.
The standard unit is U.L. approved and has standard 3 button controls (On/Off key switch, mushroom stop, start button) and a 20’ Sealtite power connection.

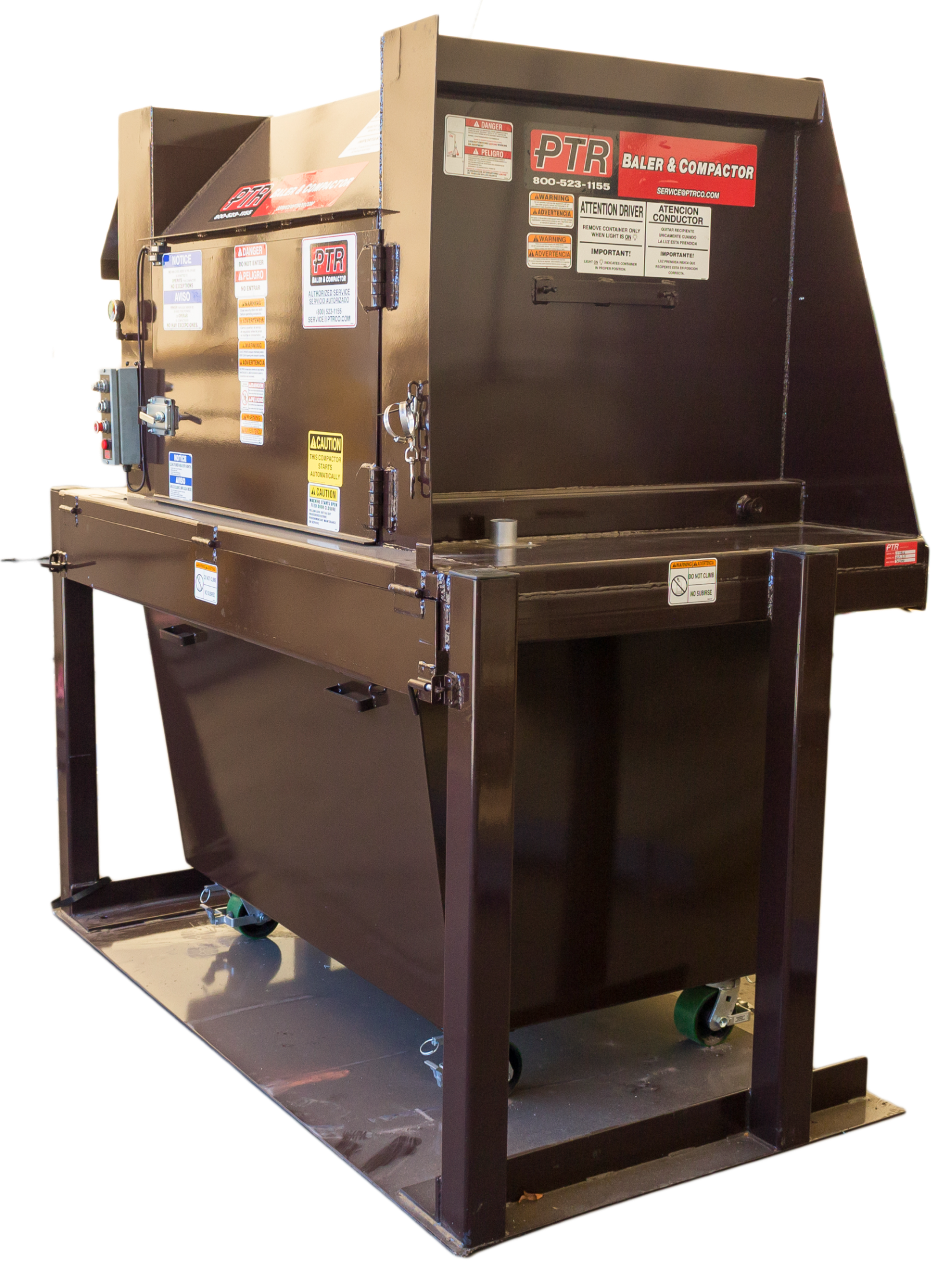

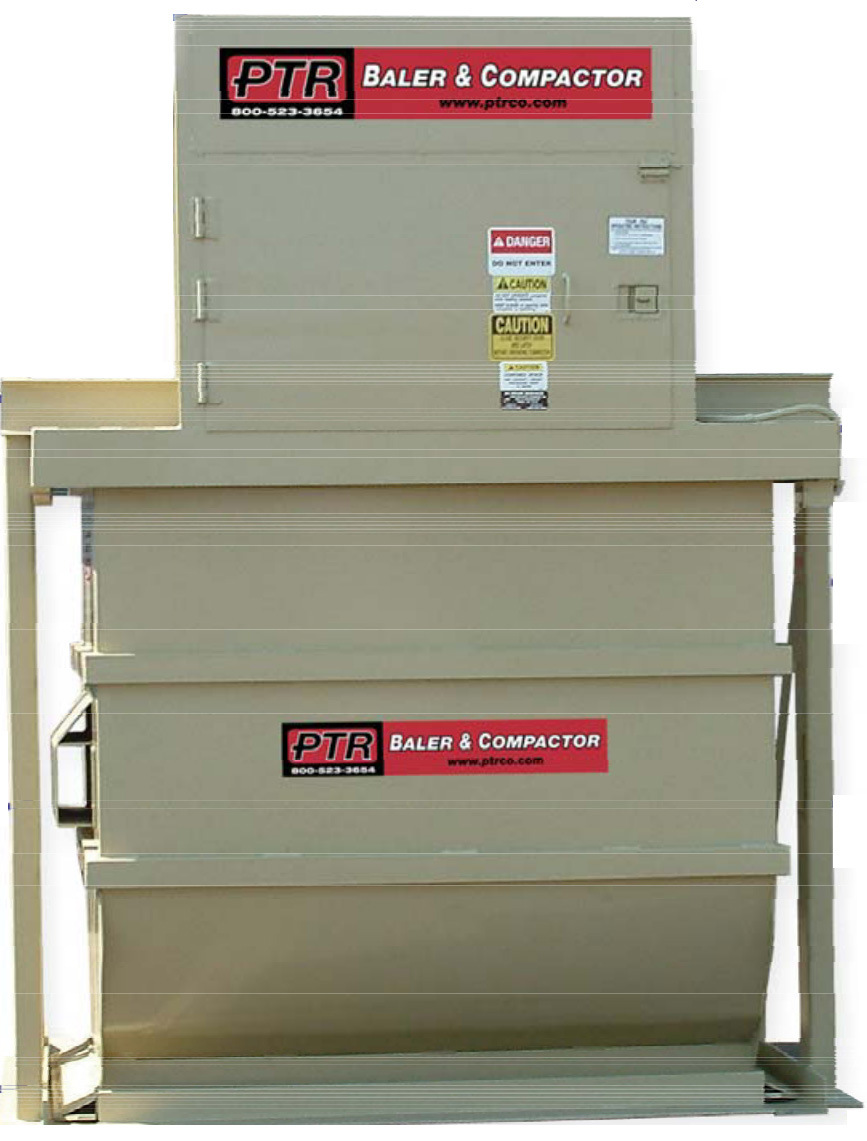

The Vertical ComPactor, or “VCP,” is an affordable, self-contained compaction system for situations where space is limited, roll-off collection is unavailable or load versatility is desired. It is a great substitute for a Self-Contained compactor when space is limited. It is designed for retail stores, quick serve restaurants, gas stations and quick marts, supermarkets, rest area truck stops, resorts, hospitals and schools.
FEATURES
Charge Box Capacity – .73 cu-yd [.6 cu-m]- Feed Opening (l X w) – 26″ X 47″ [66 cm x 119 cm]
- Capacity Per Hour – 120 cy/hr
- Average Cycle Time – 30 sec
- Total normal Force – 28,920 lbs [128,643 n]
- Total Maximum Force – 33,786 lbs [150,288 n]
- Normal Ram Pressure – 15 psi [103 kpa]
- Maximum Ram Pressure – 17 psi [117 kpa]
- Electric – 208 / 230 / 460 – 3 phase
- Control Voltage – 120 vac
- Motor – 3 hp
- Pump – 3.2 gpm [12.1 l/m]
- Normal Pressure – 2,100 psi [13,790 kpa]
- Maximum Pressure – 2,400 psi [15,858 kpa]
- Cylinder Bore – 4″ [10.2 cm]
- Cylinder Rod – 2″ [5 cm]
- Cylinder Stroke – 16” [41 cm]
- Weight – 5,000 lbs [2,268 kg]
